TITAN XF
The TITAN is a series of robust, highly impact-resistant luminaires. This makes this luminaire particularly suitable for underpasses, awnings and alleys. This version is designed so that when replacing recessed luminaires, the existing recess hole no longer needs to be taken into account, the TITAN XF always fits over the existing recess hole. The stainless steel back plate is tailor-made for every situation.
Product specifications
Product specifications
| Housing material | Stainless steel |
| Shielding material | Polycarbonate |
| Fixation | Surface |
| Color | To be determined |
| IK value | IK16 |
| IP value | IP65 |
| Future proof | Yes |
| Lifespan LED | L90B10 at 100.000 hours |
| Luminaire lifespan | 30 years |
| Cable length | - |
| Dimmable | DALI | 1-10V |
| Power supply | 230V |
- Light characteristics:
- Standard structured
Product specifications
| Type number | TXF3 |
| Light characteristic | Standard structured |
| Power | 2-6W |
| Color temperature | 3000K, 4000K or on request |
| Lumen output | 360-1080 |
| Weight | 4 kg |
Downloads
Specific wishes? Please contact us.
Product specifications
| Type number | TXF7 |
| Light characteristic | Standard structured |
| Power | 4-12W |
| Color temperature | 3000K, 4000K or on request |
| Lumen output | 720-2160 |
| Weight | 6 Kg |
Downloads
Specific wishes? Please contact us.
Product specifications
| Type number | TXF13 |
| Light characteristic | Standard structured |
| Power | 5-24W |
| Color temperature | 3000K, 4000K or on request |
| Lumen output | 900-4320 |
| Weight | 12 kg |
Downloads
Specific wishes? Please contact us.

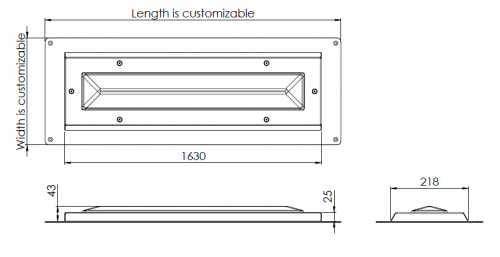

Product specifications
| Type number | TXF16 |
| Light characteristic | Standard structured |
| Power | 12-30W |
| Color temperature | 3000K, 4000K or on request |
| Lumen output | 2160-5400 |
| Weight | 17 kg |
Downloads
Specific wishes? Please contact us.
